Interfacing LED to Arduino Nano and controlling it Using arduino code

Abstract

In this article, a comprehensive step-by-step guide to interface an external LED with Arduino Nano board using arduino code. This articles lays the foundation for more advanced embedded system and IoT projects.

Pre-Request

• OS : Windows / Linux / Mac / Chrome
• Arduino IDE

Hardware Required

• Arduino Nano.
• LED.
• Resistors.
• BreadBoard.
• Mini USB Cable.
• Connecting wires.
• 5V DC power supply (Optional)

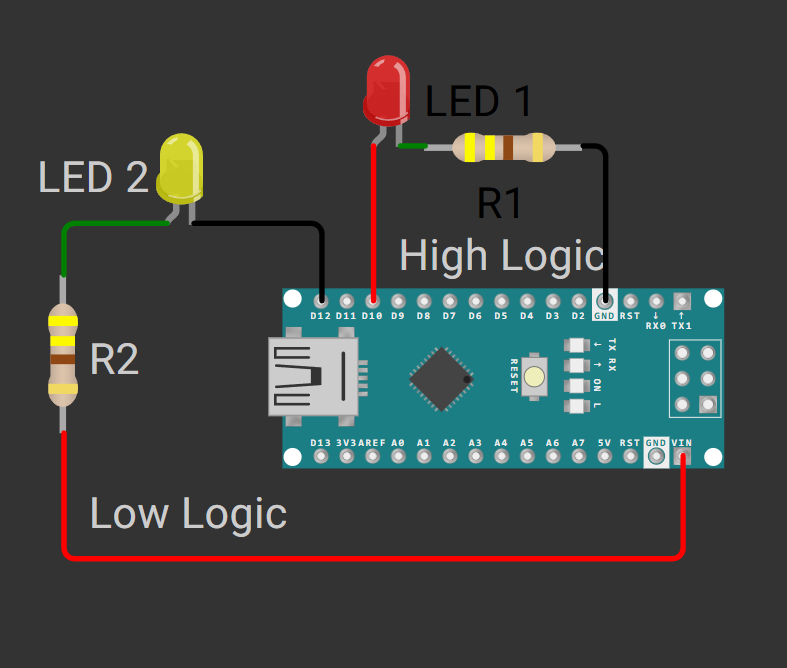

Connection Table

Code

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

#define LED_1 10
#define LED_2 12

void setup() {
  // Initialize LED as output PIN
  pinMode(LED_1, OUTPUT);
  pinMode(LED_2, OUTPUT);

}

void loop() {
  // Turning ON External LED
  digitalWrite(LED_1, HIGH); // HIGH Logic
  digitalWrite(LED_2, LOW); // LOW Logic
  delay(2000);

  // Turning OFF External LED
  digitalWrite(LED_1, LOW);  // HIGH Logic
  digitalWrite(LED_2, HIGH); // LOW Logic
  delay(1000);

}

Code Explanation

Accessing LED's.

1
2
3
4
5
6
7
8
9

#define LED_1 10
#define LED_2 12

void setup() {
  // Initialize LED as output PIN
  pinMode(LED_1, OUTPUT);
  pinMode(LED_2, OUTPUT);

}

• Define LED_1 to GPIO 10 & LED_2 to GPIO 12.
• GPIO pin 10 is configured as OUTPUT pin (Line number 6)
• GPIO pin 12 is configured as OUTPUT pin (Line number 7)

Controlling LED

11
12
13
14
15
16
17
18
19
20
21
22

void loop() {
  // Turning ON External LED
  digitalWrite(LED_1, HIGH); // HIGH Logic
  digitalWrite(LED_2, LOW); // LOW Logic
  delay(2000);

  // Turning OFF External LED
  digitalWrite(LED_1, LOW);
  digitalWrite(LED_2, HIGH);
  delay(1000);

}

• Continuous loop for blinking led is achieved using loop method.
• digitalWrite(LED_1, HIGH) sets the value of GPIO 10 to HIGH or 1, it turns ON the LED-1. (line number 13)
• digitalWrite(LED_2, LOW) sets the value of GPIO 12 to LOW or 0, it turns ON the LED-2. (line number 14)
• Delay is achieved through delay(ms_value); method. (line number 15 & 20)
• digitalWrite(LED_1, LOW) sets the value of GPIO 10 to LOW or 0, it turns OFF the LED-1. (line number 18)
• digitalWrite(LED_2, HIGH) sets the value of GPIO 12 to HIGH or 1, it turns OFF the LED-2. (line number 19)

Simulation

Extras

Components details

• Arduino Nano Data Sheet

Modules / Libraries Used

NIL
