KY-023 Joystick + Arduino Nano: Wiring, Code & Calibration for Beginners

Abstract

Joystick modules are versatile input devices widely used in robotics, gaming controllers, RC vehicles, and human-machine interfaces due to their intuitive two-axis control and built-in push-button functionality. In this tutorial, you will learn how to interface a standard KY-023 dual-axis joystick module with an Arduino Nano microcontroller using the Arduino Framework. By the end, you will be able to read analog X/Y axis values, detect button presses, calibrate joystick centering, and integrate joystick input into your own embedded projects with confidence.

Pre-Request

• OS: Windows / Linux / macOS
• Arduino IDE (v2.x recommended) or Arduino Web Editor
• Arduino Nano with CH340/FTDI drivers installed
• USB Cable (Mini-B for classic Nano, USB-C for newer variants)
• Basic understanding of C++ syntax and Arduino programming concepts

Hardware Required

• Arduino Nano (ATmega328P)
• KY-023 Dual-Axis Joystick Module
• Breadboard (mini or full-size)
• USB Mini-B Cable
• Jumper wires (M-M and M-F)
• Optional: 5V external power supply for high-current projects

⚡ Understanding Joystick Module & Analog Input

The KY-023 is a popular analog joystick module featuring two potentiometers (for X and Y axes) and a tactile push-button switch. Unlike digital buttons, joysticks output variable analog voltages proportional to their position, which the Arduino reads via its Analog-to-Digital Converter (ADC).

🔹 How Analog Joystick Works

ADC Resolution & Mapping

Arduino Nano features a 10-bit ADC (0–1023 range) across 0–5V input. The analogRead() function converts analog voltage to digital values:

int xValue = analogRead(A0); // Returns 0–1023

Button Switch Logic

The built-in push-button is active-LOW: - Not pressed: Output = HIGH (5V via pull-up) - Pressed: Output = LOW (0V, connected to GND)

🧷 Connection / Wiring Guide (Arduino Nano to Joystick Module)

🔥 Pin Mapping Table

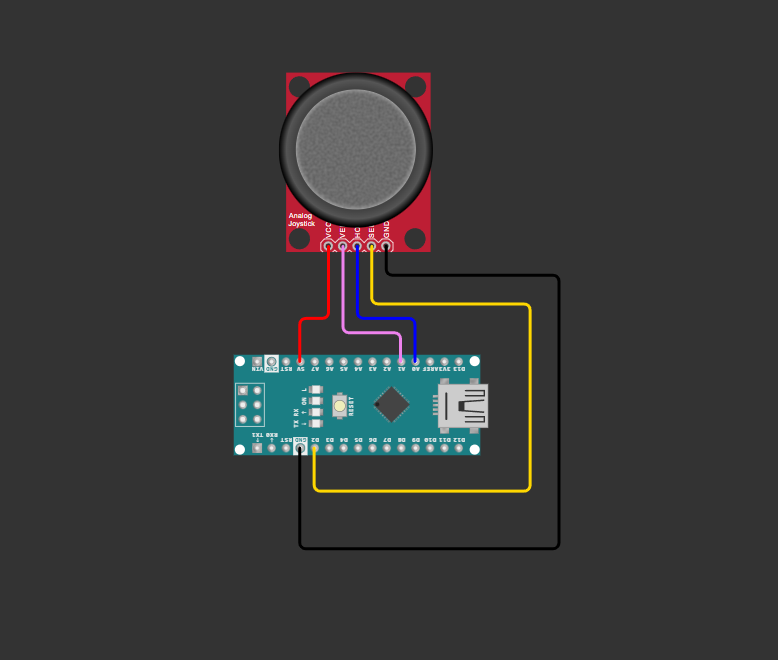

Wiring Diagram

Code

// Pin Definitions
const int PIN_X = A0;        // X-axis analog input
const int PIN_Y = A1;        // Y-axis analog input
const int PIN_BTN = 2;       // Button digital input

// Calibration values (adjust for your module)
const int CENTER_THRESHOLD = 20;  // Deadzone around center
const int MIN_VAL = 0;
const int MAX_VAL = 1023;
const int CENTER_VAL = 512;

void setup() {
  // Initialize Serial communication
  Serial.begin(9600);
  while (!Serial); // Wait for Serial Monitor

  // Configure button pin with internal pull-up
  pinMode(PIN_BTN, INPUT_PULLUP);

  Serial.println("🎮 Joystick Initialized");
  Serial.println("X\tY\tButton");
  Serial.println("--------------------");
}

void loop() {
  // Read analog values (0-1023)
  int xValue = analogRead(PIN_X);
  int yValue = analogRead(PIN_Y);

  // Read button state (LOW = pressed)
  bool buttonPressed = (digitalRead(PIN_BTN) == LOW);

  // Optional: Apply deadzone filtering for center position
  if (abs(xValue - CENTER_VAL) < CENTER_THRESHOLD) xValue = CENTER_VAL;
  if (abs(yValue - CENTER_VAL) < CENTER_THRESHOLD) yValue = CENTER_VAL;

  // Output to Serial Monitor
  Serial.print(xValue);
  Serial.print("\t");
  Serial.print(yValue);
  Serial.print("\t");
  Serial.println(buttonPressed ? "PRESSED" : "RELEASED");

  // Small delay for stable readings
  delay(100);
}

Code Explanation

Pin Definitions & Constants

const int PIN_X = A0;
const int PIN_Y = A1;
const int PIN_BTN = 2;

• Defines Arduino pins connected to joystick module
• A0/A1 are analog input pins; D2 is digital for button

Calibration Parameters

const int CENTER_THRESHOLD = 20;
const int CENTER_VAL = 512;

• CENTER_THRESHOLD: Deadzone radius to ignore minor drift at neutral position
• CENTER_VAL: Expected ADC value at joystick center (~512 for 10-bit ADC)

Setup Function

void setup() {
  Serial.begin(9600);
  pinMode(PIN_BTN, INPUT_PULLUP);
}

• Initializes serial communication at 9600 baud
• Configures button pin with internal pull-up resistor (no external resistor needed)

Main Loop: Reading & Filtering

int xValue = analogRead(PIN_X);
int yValue = analogRead(PIN_Y);
bool buttonPressed = (digitalRead(PIN_BTN) == LOW);

• Reads raw analog values for X/Y axes (0–1023)
• Reads button state (active-LOW logic)

Deadzone Filtering (Optional but Recommended)

if (abs(xValue - CENTER_VAL) < CENTER_THRESHOLD) xValue = CENTER_VAL;

• Prevents "jitter" when joystick is near center by snapping values to neutral
• Adjust CENTER_THRESHOLD (10–30) based on your module's precision

Serial Output

Serial.print(xValue); Serial.print("\t"); ...

• Outputs tab-separated values for easy parsing or Serial Plotter visualization
• Use Tools > Serial Plotter in Arduino IDE for real-time graphing

Simulation

🛑 Troubleshooting (Common Issues & Fixes)

❌ Issue 1: Joystick values stuck at 0 or 1023

✅ Causes: - Loose/broken jumper wires - Incorrect pin connections (VRx to digital pin) - Module powered with wrong voltage

✅ Fix:

// Verify connections with a simple test
void setup() {
  Serial.begin(9600);
}
void loop() {
  Serial.println(analogRead(A0)); // Should vary 0-1023 when moving joystick
  delay(200);
}

❌ Issue 2: Joystick drifts or doesn't return to center

✅ Cause: - Mechanical wear or low-quality potentiometer - ADC noise without filtering

✅ Fix:

// Implement software deadzone (already in main code)
if (abs(xValue - 512) < 25) xValue = 512;

// Optional: Add simple moving average filter
int readFiltered(int pin, int samples = 5) {
  long sum = 0;
  for(int i=0; i<samples; i++) sum += analogRead(pin);
  return sum / samples;
}

❌ Issue 3: Button always reads as pressed

✅ Cause: - Missing INPUT_PULLUP configuration - Short circuit on SW pin

✅ Fix:

pinMode(PIN_BTN, INPUT_PULLUP); // Critical for active-LOW button

❌ Issue 4: Serial Monitor shows garbled text

✅ Cause: - Baud rate mismatch between code and Serial Monitor - USB communication issues

✅ Fix: - Ensure Serial.begin(9600) matches Serial Monitor dropdown selection - Try different USB cable or port - Reset Arduino Nano after uploading code

🏁 Conclusion

You have successfully interfaced a KY-023 joystick module with an Arduino Nano using the Arduino Framework 🎉. You now understand:

• How analog potentiometers generate variable voltage signals for position sensing
• How to read and calibrate ADC values for reliable input detection
• Best practices for button debouncing, deadzone filtering, and noise reduction
• Techniques for debugging and validating sensor connections

With this foundation, you can build interactive projects like: - 🤖 RC robot directional control - 🎮 Custom game controller interfaces - 🎚️ Pan-tilt camera positioners - 🖱️ DIY mouse/trackball alternatives - 🎛️ Menu navigation systems for OLED displays

Next Steps

1. Map joystick values to servo motors or motor drivers for robotic control
2. Add hysteresis to button presses for debouncing in critical applications
3. Combine with displays (OLED, LCD) to create visual feedback interfaces
4. Explore interrupts for responsive button handling without polling
5. Scale to I2C/SPI joysticks for projects requiring multiple inputs

Extras

Components details

• KY-023 Joystick Module: Datasheet | Pinout Diagram
• Arduino Nano Data Sheet
