IoT-Enabled Smart Climate Monitoring System Using Raspberry Pi Pico W and ThingSpeak

#iot #project #thingspeak #micro python

iot Smart Climate

Table of Contents

Abstract

In this project, we build an IoT-enabled smart climate monitoring system using Raspberry Pi Pico W, a temperature and humidity sensor, and a 16×2 I2C LCD display. The system shows real-time sensor readings locally on the LCD and remotely on the ThingSpeak cloud platform, enabling both on-device monitoring and cloud-based visualization, making this system useful for home automation, weather tracking, and IoT learning applications.

Hardware Required

🛠️
Get the right hardware kit
Raspberry Pi Pico, Arduino, sensors, and IoT maker essential Kits—perfectly matched for your learning.
Explore Hardware →
  • Raspberry Pi Pico W / Pico 2W.
  • DHT 11/22 sensor.
  • BreadBoard.
  • Micro USB Cable.
  • Connecting wires.
  • 5V DC power supply (Optional)
Components Purchase Link
Raspberry Pi Pico W link
Raspberry Pi Pico 2W link
DHT 11/22 sensor link
128x64 OLED display link
BreadBoard / PCB large : small
Connecting Wires link
Micro USB Cable link
5V DC Adaptor link

  • Pico Iot Spark Kit

  • Pico Iot Explorer Kit

Connection Table

DHT 11/22 GPIO Remarks
VCC (1) +5 V +5V of Board or External 5V DC Supply
Data (2) 21 Any GPIO pin can be used
NC (3) - No Connection
GND (4) GND Ground
16x2 I2C LCD GPIO Remarks
GND (1) GND Ground
VCC (2) +5 V +5V of Board or External 5V DC Supply
SCL (3) 3 I2C0 series SCL pin
SDA (4) 2 I2C0 series SDA pin

Note

  • Instead of a DHT11 or DHT22 sensor, you may use the BME280 sensor for improved accuracy and additional environmental data.
  • The BME280 can measure:
    • Temperature
    • Humidity
    • Atmospheric Pressure
  • For simple projects you can also use 16x2 LCD display.

Circuit Diagram

fig-Connection Diagram

Setup ThingSpeak Channel

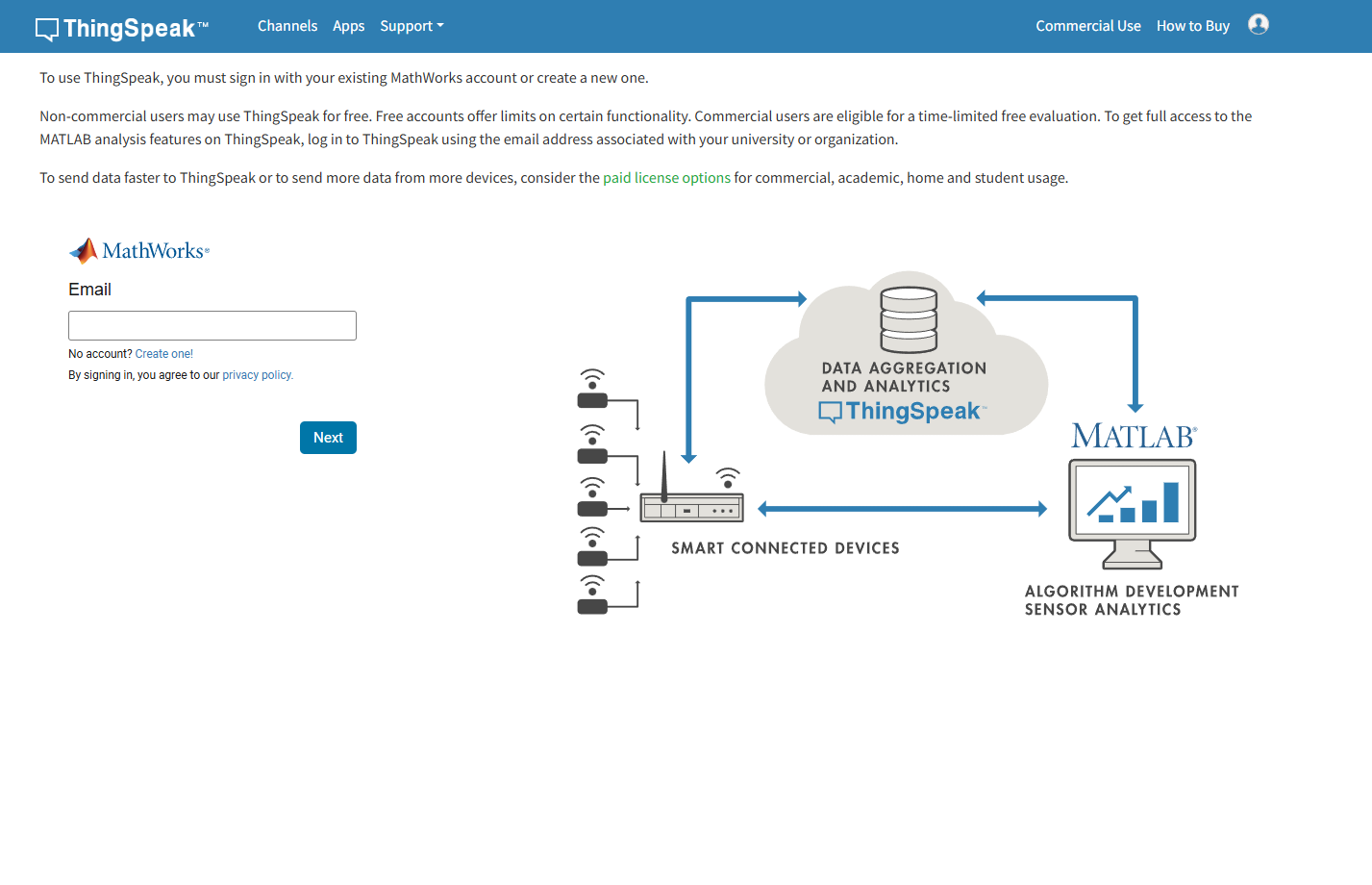

  1. Create a ThingSpeak account and log in 🔗 link. Login Page

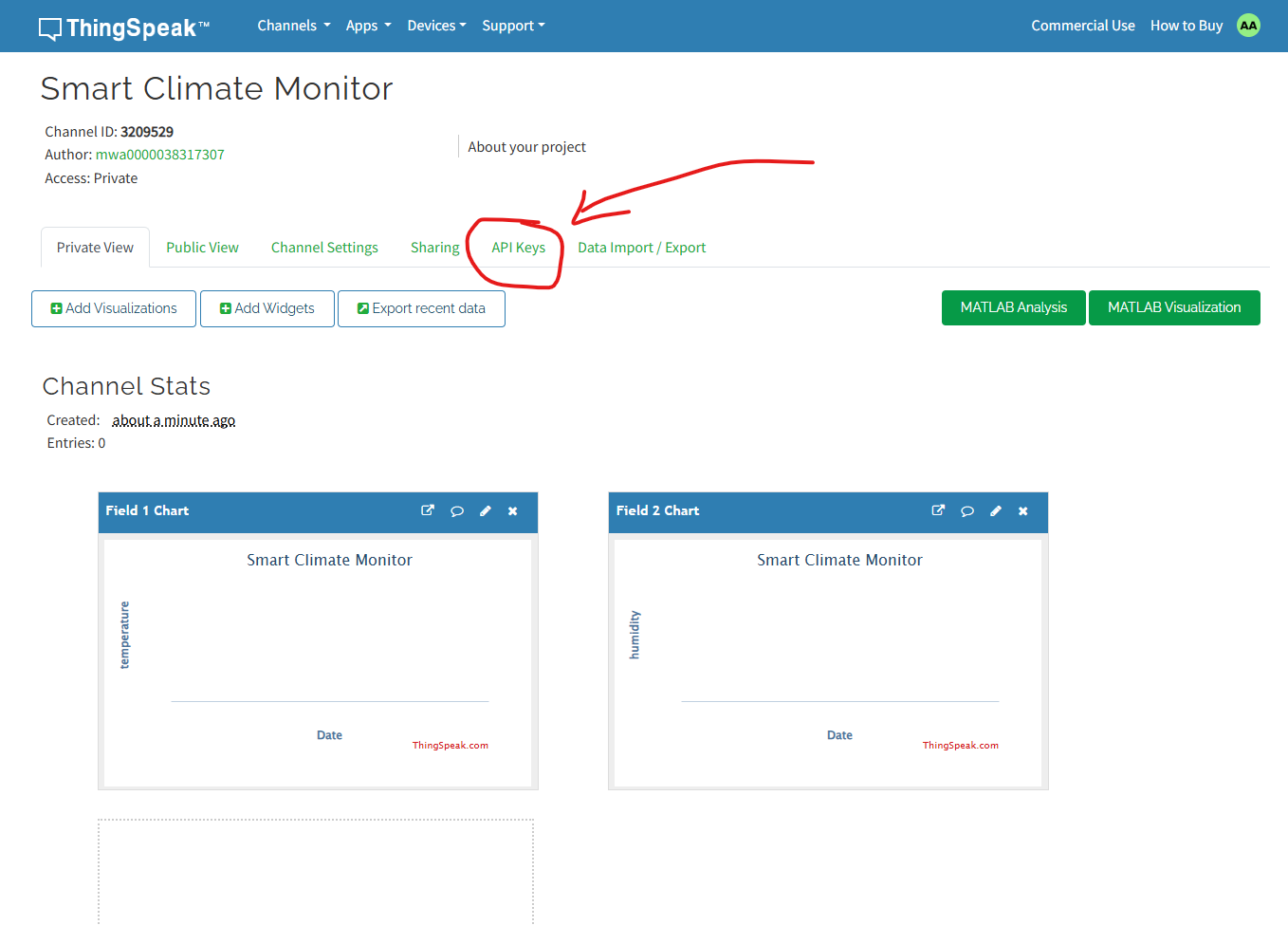

  2. Go to Channels → My Channels → New Channel. Channel Page
  3. Name your channel (e.g., “Smart Climate Monitor”).

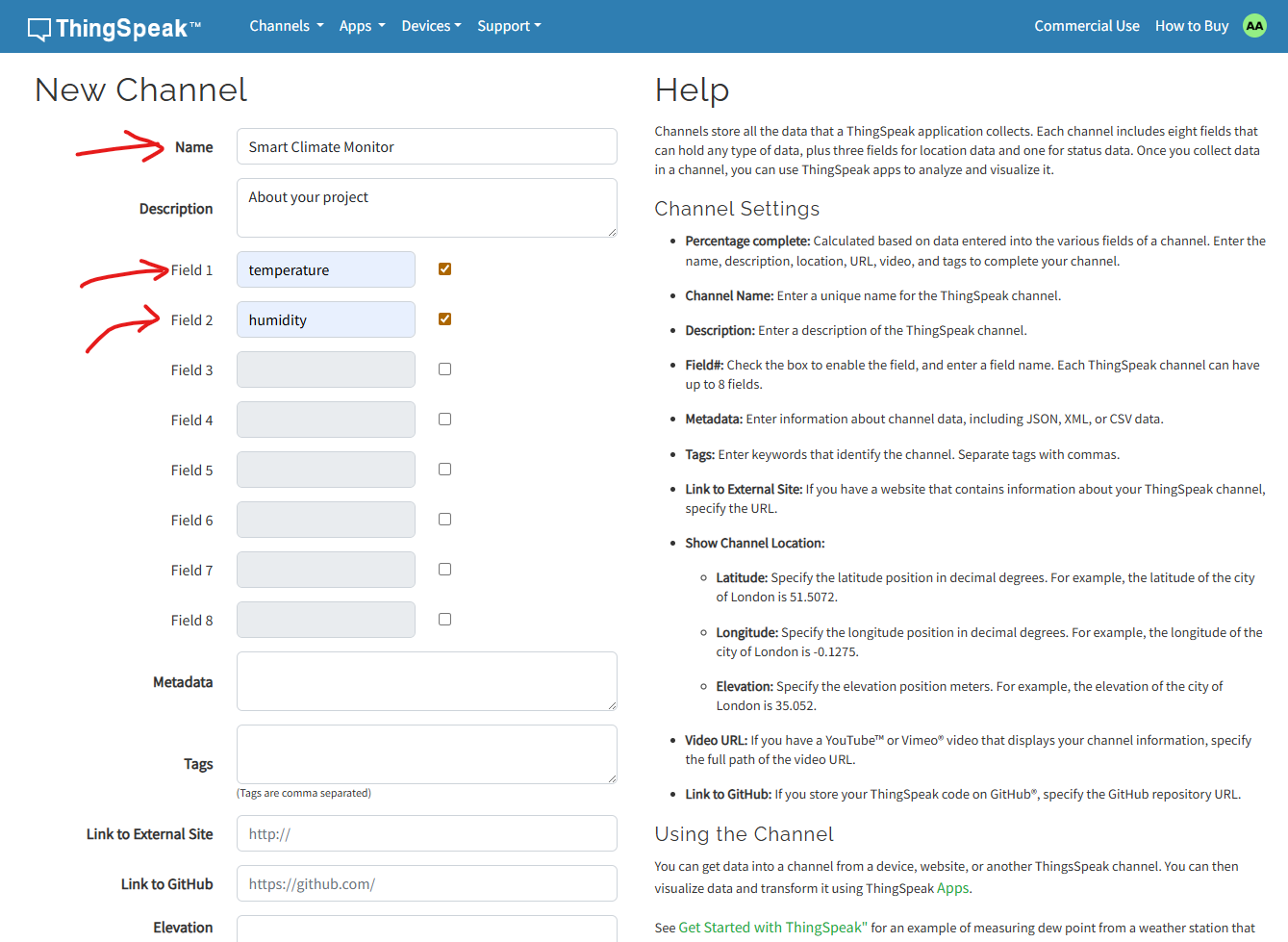

  4. Add fields for Temperature and Humidity. channel details

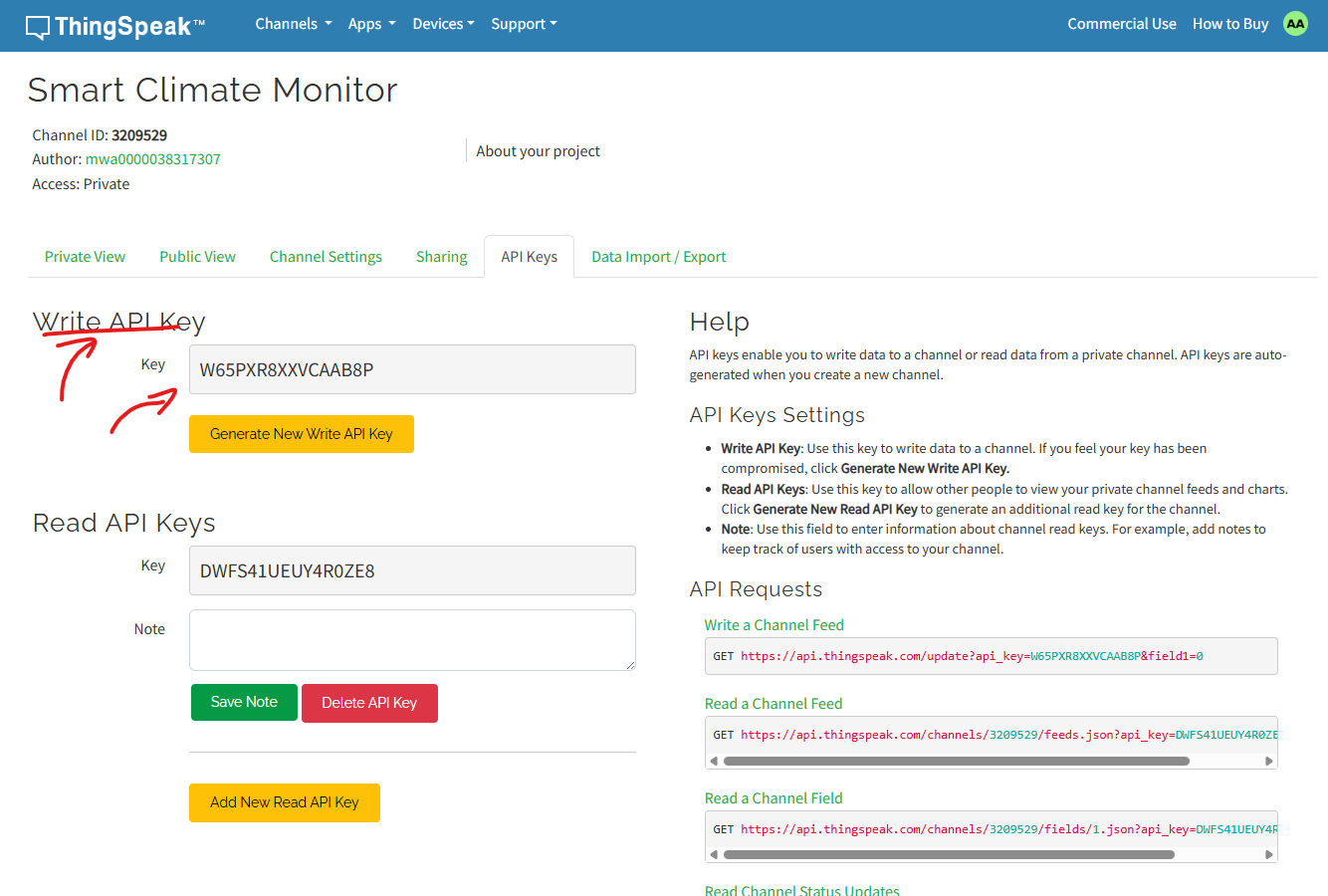

  5. Save and note down your Write API Key — you’ll need this in your code. project page Write API

📂 Code

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
from machine import Pin, I2C
import dht
import time
import json
import framebuf

from icons import pico_logo
from ssd1306 import SSD1306_I2C


# Display interface
i2c=I2C(1,scl=Pin(3),sda=Pin(2),freq=400000)
display = SSD1306_I2C(128, 64, i2c)

# Sensor interface
sensor = dht.DHT22(Pin(21))


# Wifi Configeration
ssid = "Wokwi-GUEST"      # replace with your wifi ssid
password = "aavishkarah"  # replace with your wifi password
wifi_connected = False

# Thingspeak Configeration
api_key = "API_KEY"        # replace with your Thingspeak API KEY
host = "api.thingspeak.com"


def erase_lines(y, line=1):
    display.rect(0,y, 128, 8*line, 0, True)


def blink_display(n=1, delay=250):
    for _ in range(n):
        display.invert(1)
        display.contrast(100)
        display.show()
        time.sleep_ms(delay)
        display.invert(0)
        display.contrast(0)
        display.show()
        time.sleep_ms(delay)


def display_datasent_status(status):
    erase_lines(40, 2)
    if status == "200":
        display.text("Data Sent", 24, 44)
    elif status == "400":
        display.text("400 ERROR", 24, 44)
        blink_display(2, 150)
    else:
        display.text("ERROR: Check WiFi", 0, 44)
        blink_display()
    display.show()
    time.sleep_ms(1000)
    erase_lines(40, 2)
    display.show()


def do_connect(ssid, password):
    global wifi_connected

    import network
    time.sleep_ms(2000)
    sta_if = network.WLAN(network.STA_IF)
    wifi_connected = sta_if.isconnected()

    if not wifi_connected:
        sta_if.active(True)
        sta_if.connect(ssid, password)
        loc = 10
        for i in range(10):
            display.text("*",loc,45)
            display.show()
            time.sleep_ms(2500)
            wifi_connected = sta_if.isconnected()
            if wifi_connected:
                display.fill(0)
                display.text('Wifi Connected',10,30)
                display.show()
                time.sleep_ms(1000)
                blink_display(4, 100)
                break
            loc += 10
        if not wifi_connected:
            display.fill(0)
            display.text(" NO INTERNET ",0,20)
            display.show()
            time.sleep_ms(2000)
            blink_display(4, 100)

    else:
        display_wifi_connected()


def send_data(temperature, humidity):
    try:
        import socket
        path = f"/update?api_key={api_key}&field1={temperature:0.2f}&field2={humidity:0.2f}"
        addr = socket.getaddrinfo(host, 80)[0][-1]
        s = socket.socket()
        s.connect(addr)
        s.send(bytes('GET /%s HTTP/1.0\r\nHost: %s\r\n\r\n' % (path, host), 'utf8'))

        while True:
            data = str(s.recv(1024)).replace('b','').replace("'", "")
            # print(data)
            if data:
                if data.startswith("HTTP/"):
                    status_code = data.split()[1]
            else:
                break
        s.close()

        display_datasent_status(status_code)

    except:
        display_datasent_status(False)
        global wifi_connected
        wifi_connected = False


def welcome_message():
    # display Raspberry Pi Pico Logo
    display.fill(0)
    display.blit(pico_logo, 48, 0)
    display.show()
    time.sleep_ms(2500)

    # display Aavishkarah
    display.text('Welcome to',25,34)
    display.show()
    time.sleep_ms(250)
    display.text("Aavishkarah",20,45)
    display.show()
    time.sleep_ms(2500)


welcome_message()

display.fill(0)
display.text("Connecting to",10,20)
display.text("Wifi",45,34)
display.text("*",0,45)
display.show()
time.sleep_ms(50)

# connect to wifi
do_connect(ssid, password)

# Clear the display
display.fill(0)

while True:
    sensor.measure()
    temperature = sensor.temperature()
    humidity = sensor.humidity()

    # display temperature & humidity
    erase_lines(12, 3)
    display.text("Temp. deg:", 0, 12)
    display.text("Humidity :", 0, 24)
    display.text(str(temperature), 85, 12)
    display.text(str(humidity), 85, 24)
    display.show()

    # Send data to thingspeak
    send_data(temperature, humidity)

    # Thingspeak accepts data for every 15 sec
    # 15 sec delay
    time.sleep_ms(15000)

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
# MicroPython SSD1306 OLED driver, I2C and SPI interfaces

from micropython import const
import framebuf


# register definitions
SET_CONTRAST = const(0x81)
SET_ENTIRE_ON = const(0xA4)
SET_NORM_INV = const(0xA6)
SET_DISP = const(0xAE)
SET_MEM_ADDR = const(0x20)
SET_COL_ADDR = const(0x21)
SET_PAGE_ADDR = const(0x22)
SET_DISP_START_LINE = const(0x40)
SET_SEG_REMAP = const(0xA0)
SET_MUX_RATIO = const(0xA8)
SET_IREF_SELECT = const(0xAD)
SET_COM_OUT_DIR = const(0xC0)
SET_DISP_OFFSET = const(0xD3)
SET_COM_PIN_CFG = const(0xDA)
SET_DISP_CLK_DIV = const(0xD5)
SET_PRECHARGE = const(0xD9)
SET_VCOM_DESEL = const(0xDB)
SET_CHARGE_PUMP = const(0x8D)

# Subclassing FrameBuffer provides support for graphics primitives
# http://docs.micropython.org/en/latest/pyboard/library/framebuf.html
class SSD1306(framebuf.FrameBuffer):
    def __init__(self, width, height, external_vcc):
        self.width = width
        self.height = height
        self.external_vcc = external_vcc
        self.pages = self.height // 8
        self.buffer = bytearray(self.pages * self.width)
        super().__init__(self.buffer, self.width, self.height, framebuf.MONO_VLSB)
        self.init_display()

    def init_display(self):
        for cmd in (
            SET_DISP,  # display off
            # address setting
            SET_MEM_ADDR,
            0x00,  # horizontal
            # resolution and layout
            SET_DISP_START_LINE,  # start at line 0
            SET_SEG_REMAP | 0x01,  # column addr 127 mapped to SEG0
            SET_MUX_RATIO,
            self.height - 1,
            SET_COM_OUT_DIR | 0x08,  # scan from COM[N] to COM0
            SET_DISP_OFFSET,
            0x00,
            SET_COM_PIN_CFG,
            0x02 if self.width > 2 * self.height else 0x12,
            # timing and driving scheme
            SET_DISP_CLK_DIV,
            0x80,
            SET_PRECHARGE,
            0x22 if self.external_vcc else 0xF1,
            SET_VCOM_DESEL,
            0x30,  # 0.83*Vcc
            # display
            SET_CONTRAST,
            0xFF,  # maximum
            SET_ENTIRE_ON,  # output follows RAM contents
            SET_NORM_INV,  # not inverted
            SET_IREF_SELECT,
            0x30,  # enable internal IREF during display on
            # charge pump
            SET_CHARGE_PUMP,
            0x10 if self.external_vcc else 0x14,
            SET_DISP | 0x01,  # display on
        ):  # on
            self.write_cmd(cmd)
        self.fill(0)
        self.show()

    def poweroff(self):
        self.write_cmd(SET_DISP)

    def poweron(self):
        self.write_cmd(SET_DISP | 0x01)

    def contrast(self, contrast):
        self.write_cmd(SET_CONTRAST)
        self.write_cmd(contrast)

    def invert(self, invert):
        self.write_cmd(SET_NORM_INV | (invert & 1))

    def rotate(self, rotate):
        self.write_cmd(SET_COM_OUT_DIR | ((rotate & 1) << 3))
        self.write_cmd(SET_SEG_REMAP | (rotate & 1))

    def show(self):
        x0 = 0
        x1 = self.width - 1
        if self.width != 128:
            # narrow displays use centred columns
            col_offset = (128 - self.width) // 2
            x0 += col_offset
            x1 += col_offset
        self.write_cmd(SET_COL_ADDR)
        self.write_cmd(x0)
        self.write_cmd(x1)
        self.write_cmd(SET_PAGE_ADDR)
        self.write_cmd(0)
        self.write_cmd(self.pages - 1)
        self.write_data(self.buffer)


class SSD1306_I2C(SSD1306):
    def __init__(self, width, height, i2c, addr=0x3C, external_vcc=False):
        self.i2c = i2c
        self.addr = addr
        self.temp = bytearray(2)
        self.write_list = [b"\x40", None]  # Co=0, D/C#=1
        super().__init__(width, height, external_vcc)

    def write_cmd(self, cmd):
        self.temp[0] = 0x80  # Co=1, D/C#=0
        self.temp[1] = cmd
        self.i2c.writeto(self.addr, self.temp)

    def write_data(self, buf):
        self.write_list[1] = buf
        self.i2c.writevto(self.addr, self.write_list)


class SSD1306_SPI(SSD1306):
    def __init__(self, width, height, spi, dc, res, cs, external_vcc=False):
        self.rate = 10 * 1024 * 1024
        dc.init(dc.OUT, value=0)
        res.init(res.OUT, value=0)
        cs.init(cs.OUT, value=1)
        self.spi = spi
        self.dc = dc
        self.res = res
        self.cs = cs
        import time

        self.res(1)
        time.sleep_ms(1)
        self.res(0)
        time.sleep_ms(10)
        self.res(1)
        super().__init__(width, height, external_vcc)

    def write_cmd(self, cmd):
        self.spi.init(baudrate=self.rate, polarity=0, phase=0)
        self.cs(1)
        self.dc(0)
        self.cs(0)
        self.spi.write(bytearray([cmd]))
        self.cs(1)

    def write_data(self, buf):
        self.spi.init(baudrate=self.rate, polarity=0, phase=0)
        self.cs(1)
        self.dc(1)
        self.cs(0)
        self.spi.write(buf)
        self.cs(1)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
import framebuf

# Raspberry Pi logo as a 32x32 bytearray
buffer = bytearray([
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x7C, 0x3F, 0x00,
    0x01, 0x86, 0x40, 0x80, 0x01, 0x01, 0x80, 0x80, 0x01, 0x11, 0x88, 0x80, 0x01, 0x05, 0xA0, 0x80,
    0x00, 0x83, 0xC1, 0x00, 0x00, 0x43, 0xE3, 0x00, 0x00, 0x7E, 0xFC, 0x00, 0x00, 0x4C, 0x27, 0x00,
    0x00, 0x9C, 0x11, 0x00, 0x00, 0xBF, 0xFD, 0x00, 0x00, 0xE1, 0x87, 0x00, 0x01, 0xC1, 0x83, 0x80,
    0x02, 0x41, 0x82, 0x40, 0x02, 0x41, 0x82, 0x40, 0x02, 0xC1, 0xC2, 0x40, 0x02, 0xF6, 0x3E, 0xC0,
    0x01, 0xFC, 0x3D, 0x80, 0x01, 0x18, 0x18, 0x80, 0x01, 0x88, 0x10, 0x80, 0x00, 0x8C, 0x21, 0x00,
    0x00, 0x87, 0xF1, 0x00, 0x00, 0x7F, 0xF6, 0x00, 0x00, 0x38, 0x1C, 0x00, 0x00, 0x0C, 0x20, 0x00,
    0x00, 0x03, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
])

# Load the logo into a framebuffer
pico_logo = framebuf.FrameBuffer(buffer, 32, 32, framebuf.MONO_HLSB)

Simulation

Not able to view the simulation

  • Desktop or Laptop : Reload this page ( Ctrl+R )
  • Mobile : Use Landscape Mode and reload the page

Results and Visualization

🛠️
Get the right hardware kit
Raspberry Pi Pico, Arduino, sensors, and IoT maker essential Kits—perfectly matched for your learning.
Explore Hardware →

  • Pico Iot Spark Kit

  • Pico Iot Explorer Kit

After running the script:

  • Your channel on ThingSpeak will start displaying live data graphs for temperature and humidity.
  • These graphs update automatically as your Raspberry Pi Pico W sends new values.
  • You can also embed or share the dashboard for remote monitoring.

Applications

This system can be used for:

  • Home environment monitoring
  • Greenhouse condition tracking
  • Weather station projects
  • IoT learning and experimentation

This Project can be enhanced by integrating alerts, or adding additional sensors such as pressure or air quality units.
